Google Charts IE7 IE8 Issue: Date formatting problem

2 minute read #google-charts, #ie7, #ie8, #javascript

Just a quick post about an issue I’ve had with Google Charts on IE7/8.

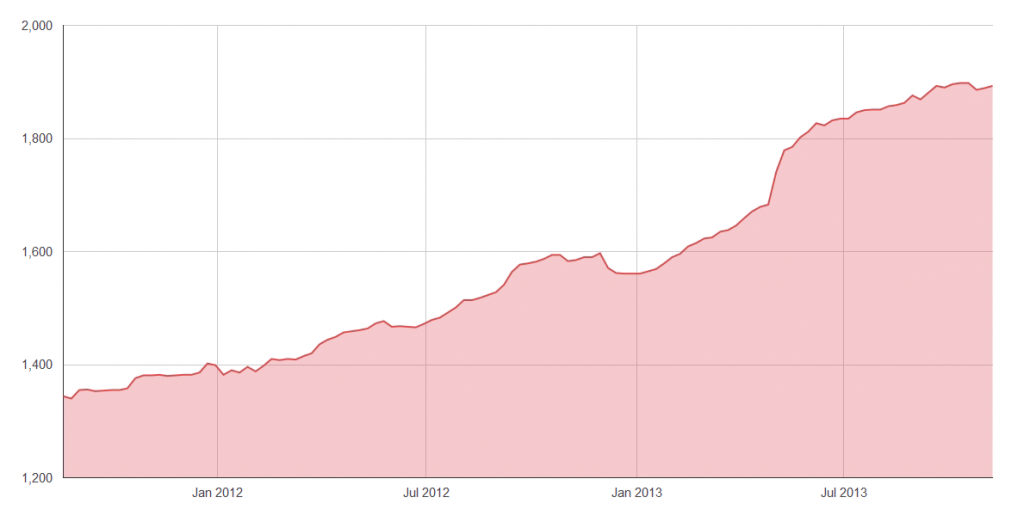

When viewing my page in Firefox or Chrome my graph displayed as expected.

Correct graph

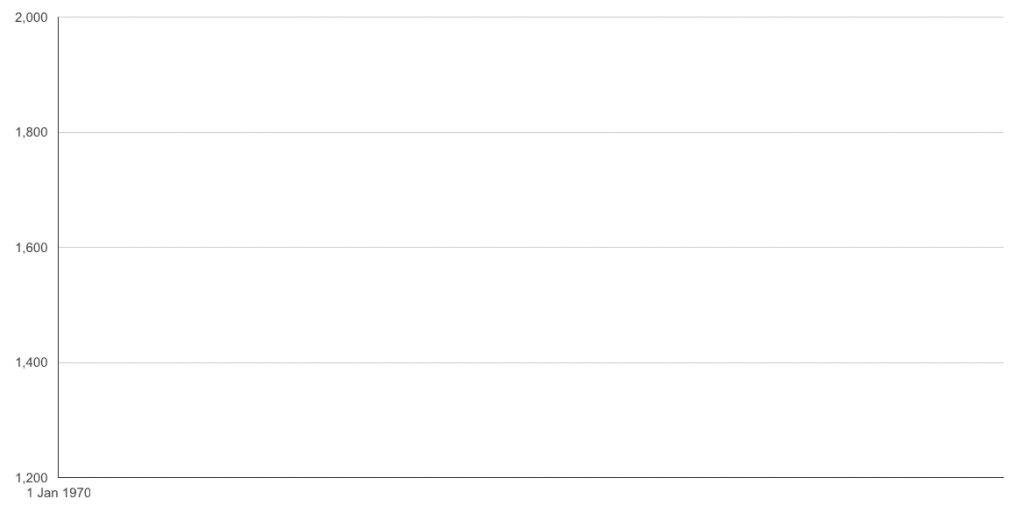

However when I tried to view it in IE8 or IE7 the date axis just showed 1st of Jan 1970 and no chart.

Broken graph

After a bit of digging it appears that this is to do with the JavaScript function I used to convert a string to a date object. All of my dates are stored in a json file with the format YYYY-MM-DD along with an integer value, to convert the date string into a JS date object I used the following code

var data = new google.visualization.DataTable();
var dataArray = [];

$.each(json.item, function(i, item){
  dataArray.push([new Date(item.Date), parseInt(item.Value)]);


the important part of this being the new Date(item.Date) which just reads in the date string and converts it to a Date object.

However IE8/7 seems to be unable to parse a string in the format YYYY-MM-DD and must have it in the format YYYY/MM/DD. I attempted this by adding a .replace(“-”,”/”) to the end of the variable but then it caused it to stop displaying in Firefox.

To counter this I made use of some browser detection I had implemented at the top of the page

<!--[if lt IE 9]> <html lang="en" class="legacyie"> <![endif]-->
<!--[if gt IE 8]><!--> <html lang="en" class=""> <!--<![endif]-->

This basically adds a class to the html container to notify that the version of IE is older than version 9 (although there is no chance this will work in IE6 but that doesn’t matter as we’re only interested in 7 and 8).

Then I modified my JavaScript above to look like this

var data = new google.visualization.DataTable();
var dataArray = [];

$.each(json.item, function(i, item){

  // Create temporary variable to store the date
  parsedDate = item.Date;

  // If the 'legacyie' class has been set perform the string replace
  if( $("html").hasClass("legacyie") ) { parsedDate = parsedDate.replace("-", "/"); };

  dataArray.push([new Date(parsedDate), parseInt(item.Value)]);

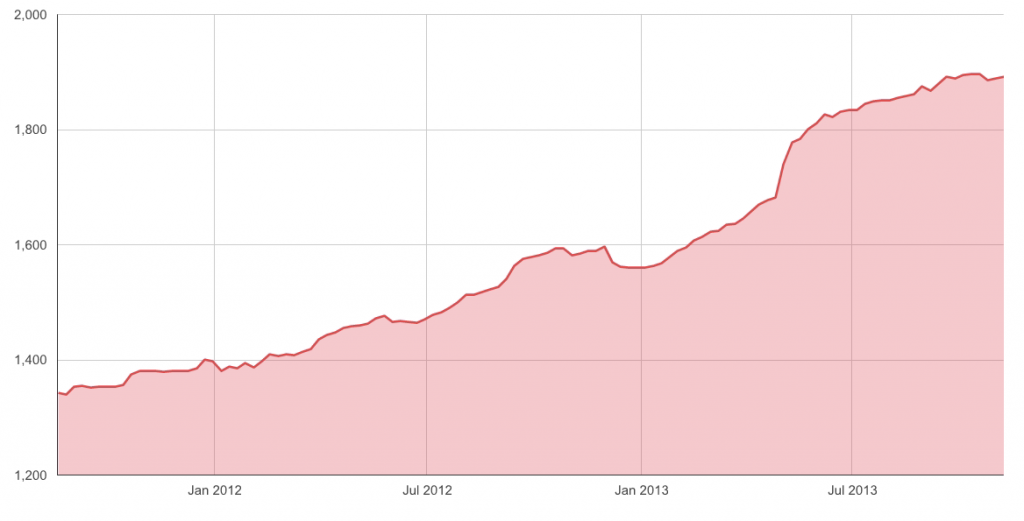

Now my graph displays as it always has in Firefox/Chrome but also not works in IE7/8

Fixed Graph
